Jeep Grand Cherokee Fuse Box Diagram 2002

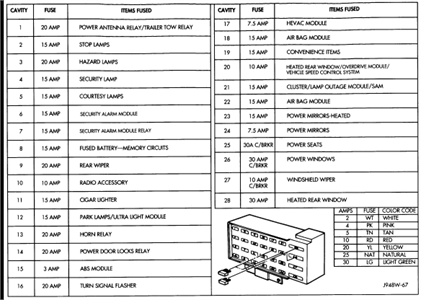

Download Jeep Grand Cherokee Fuse Box Diagram 2002 Gif. On some or all wj models, this fuse is also used for the ashtray light and the shifter assembly light. The fuse panel is on the lower instrument panel just to the left of the steering column.

Схема предохранителей jeep grand cherokee (wk2; It is printed on the inside of the fuse panel door and shows the location and function of each fuse. The fuse panel is on the lower instrument panel just to the left of the steering column.

For the jeep grand cherokee second generation 1999, 2000, 2001, 2002, 2003, 2004 model year.

Could it be the fan switch? 1 spare 2 spare 3 10a headlight high beam left 4 15a flasher 5 25a radio/amplifier 6 15a park lights 7 10a. The fuse box diagram for a 1997 jeep grand cherokee is located below the steering column, near the hood release. The fuse boxes inside your jeep cherokee contain fuses that control just about every system and component.
